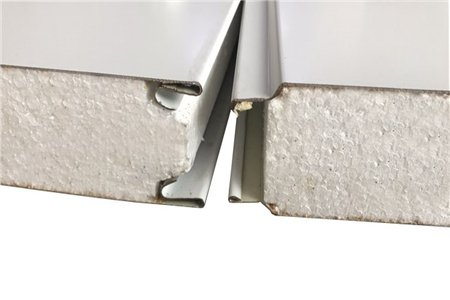

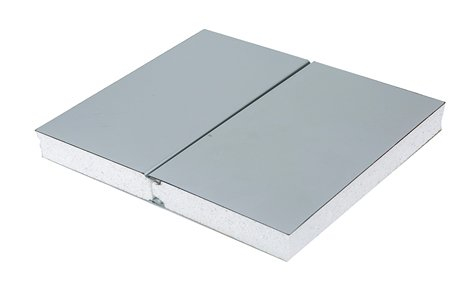

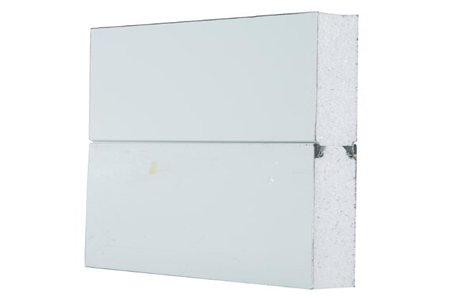

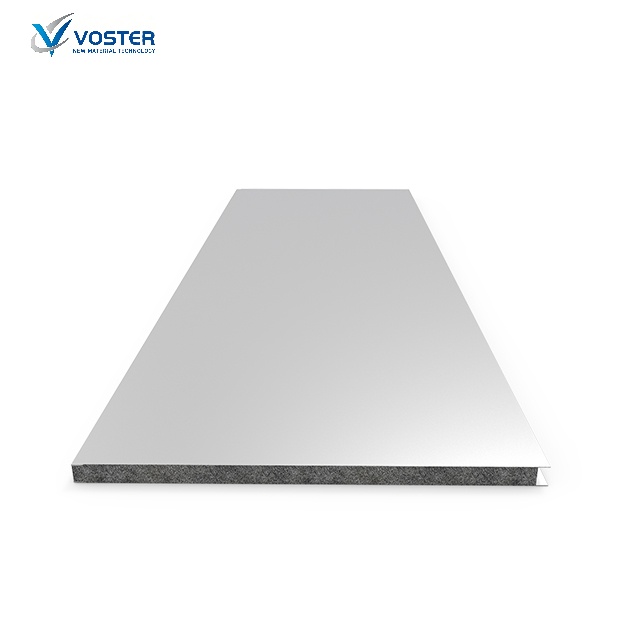

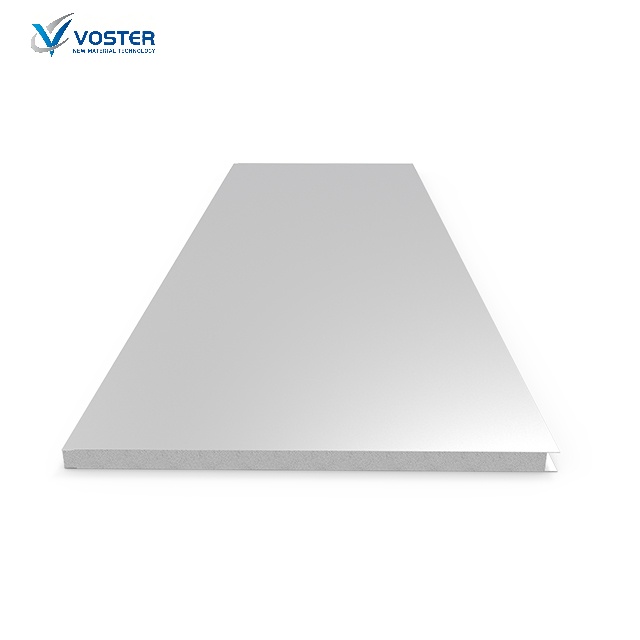

Z-Lock EPS Sandwich Wall Panel

EPS = Good Heat Insulation

Z-Lock EPS Sandwich Panel with EPS foam cores meet the strictest heat insulation requirements, while also complying with the required insulation properties and maintaining a good bearing capacity.

▲EPS insulation core

▲Sound Insulation

▲Vertical or horizontal installation

▲Standard lengths are from 2 m to 10 m (max. 12 m)

▲Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm

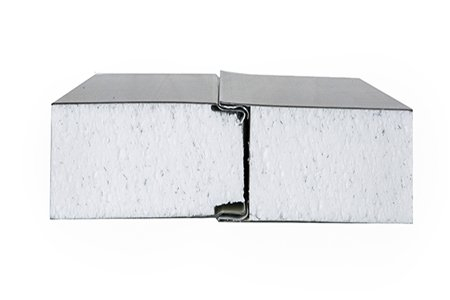

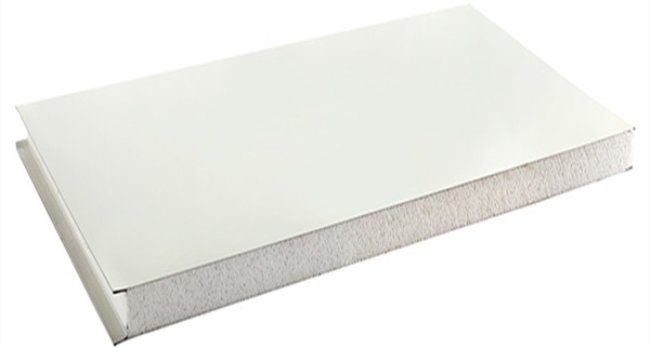

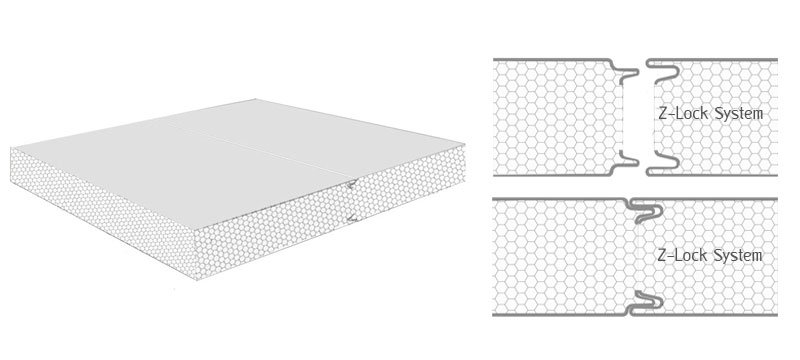

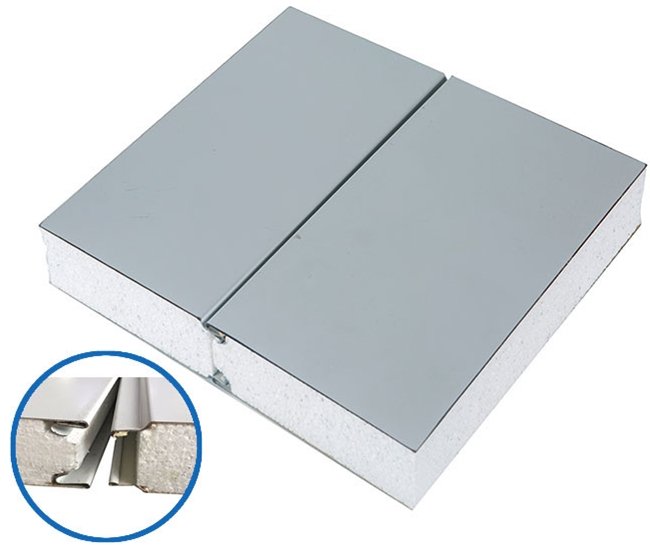

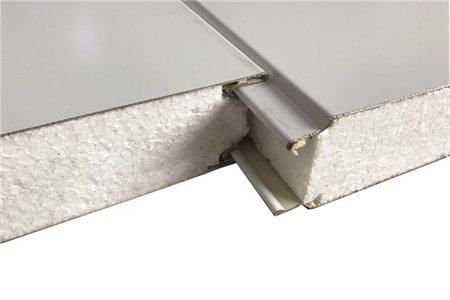

Z-Lock EPS Sandwich Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density EPS foam. Thanks to their properties the panels may be applied in object that require very high fire resistance, EPS sandwich panel is the most effective acoustic materials used on construction.

Take the 50 mm thick Z-Lock EPS sandwich panel for example and the panel can absorb the sound over 30 db/m2.Widely used in the steel structure factory building, activities room, roof, wall, air clean room ceiling and partition.

SPECIFICATIONS

Z-Lock EPS Sandwich Panel are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure buildings.

★Steel frame structure buildings

★Store houses and logistic centres

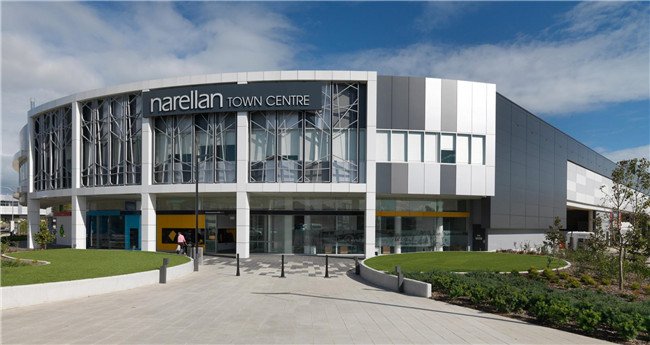

★Commercial buildings and offices

★Food industry facilities

★Agricultural objects

★Logistics centers
