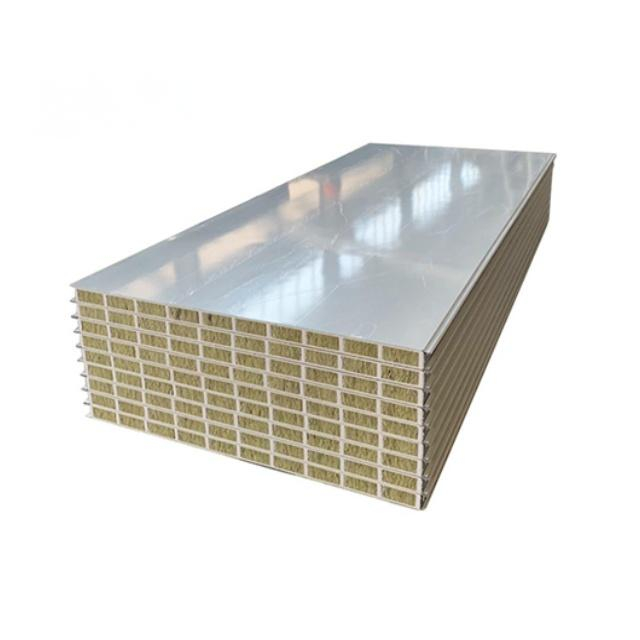

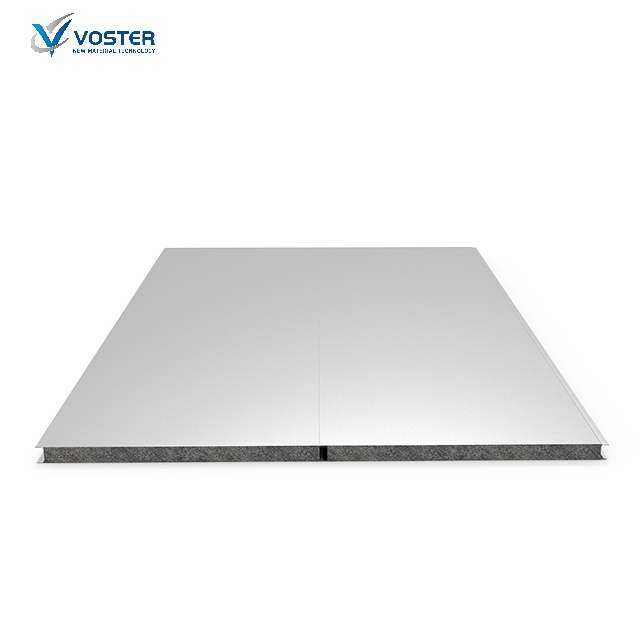

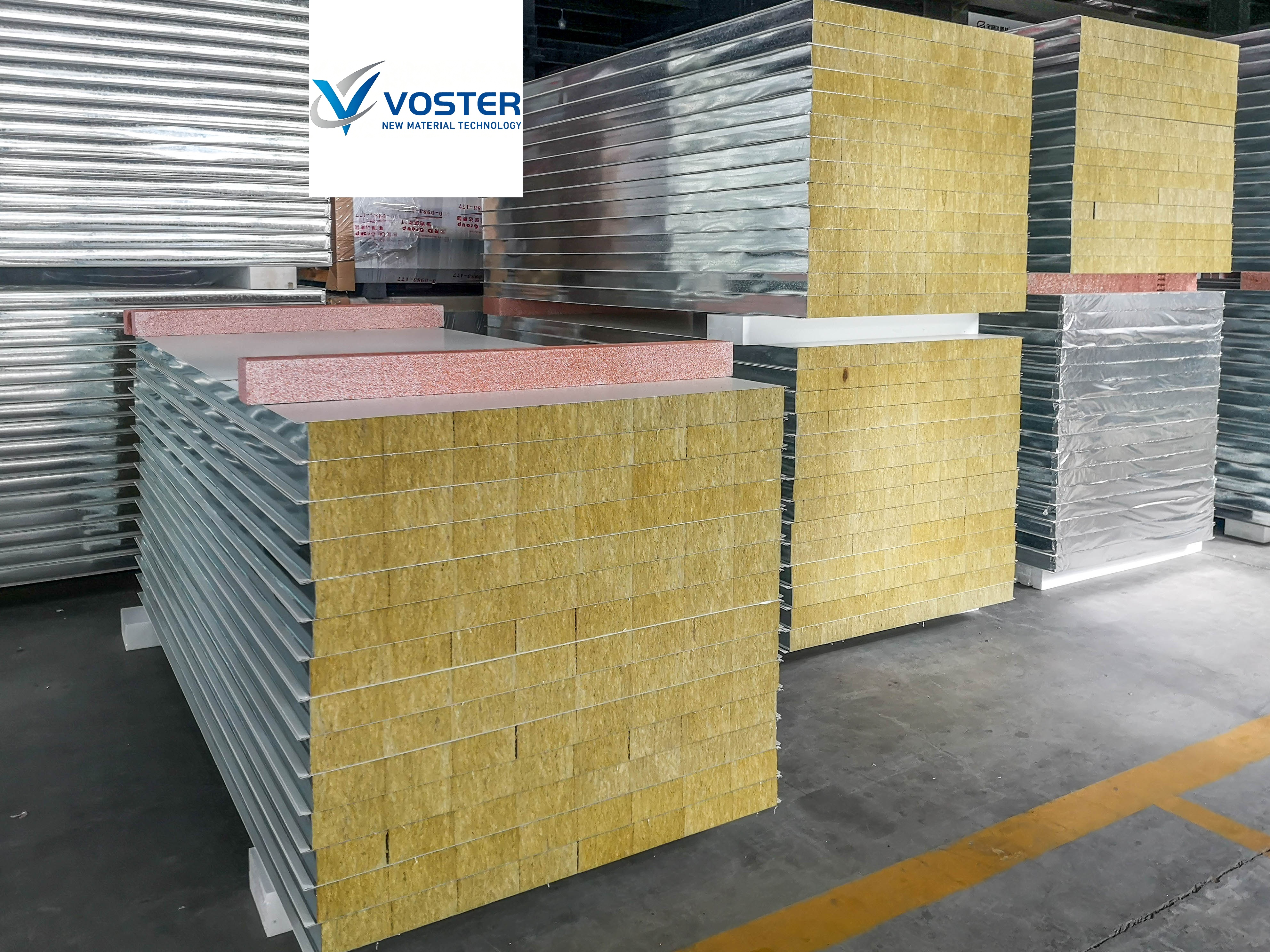

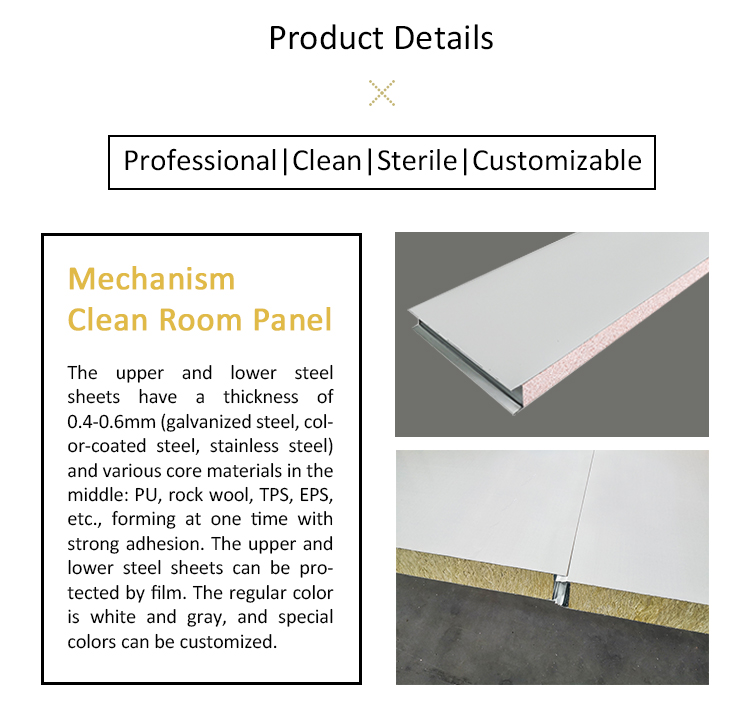

Clean Room Panels are composed of 3 layers, the external and internal is galvanized sheet or Aluminum sheets, and core materials used high density polyurethane foam. Thanks to their good thermal insulation properties, it can be applied in projects that required very high heat insulation performanece.
Advantage：
1.BRD 304 stainless steel hand-made cleanroom panel is used with aluminum profiles,modular clean room panel installation installation, convenient and fast.
2.Factory accepts customization.
3.Diversified core material for different environments，fire protection， insulation，noise reduction，moisture resistance.
4.The cleanroom wall panel，strength，flatness and aesthetics of the clean panel are greatly improved，and the product quality is more stable.
5.The hole reinforcement reserve and the wire pipe box are assembled into the plate in advance in the factory, which can effectively reduce the secondary pollution in the process of use, especially in the environment of food processing.
BRD clean room panels suppliers, the clean room panel material is 304 stainless steel.The density is 7.93g/cm3, which is also called 18/8 stainless steel in the industry. It is high-temperature resistant to 800 ° c, with good processing performance and high toughness, and can withstand frequent disinfection, washing and wiping. It is widely used in the food and medical industry.
Width | 980mm |
Max Length | 7500mm |
Wall & Ceiling TCK | 50mm |
Fire Rating | A |
Steel Facer TCK | 0.5mm |
Outer Plate Material | 304SS |

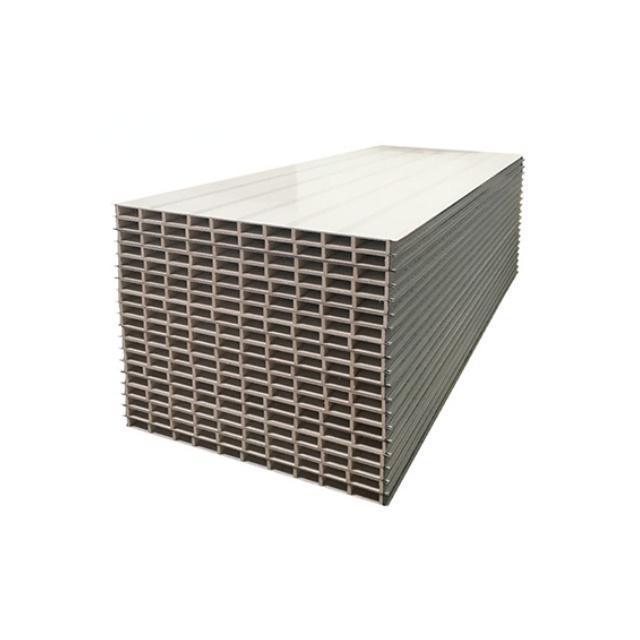

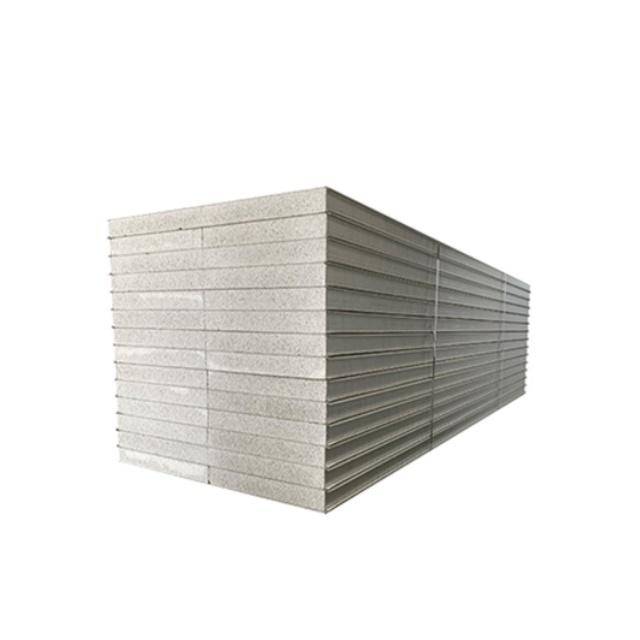

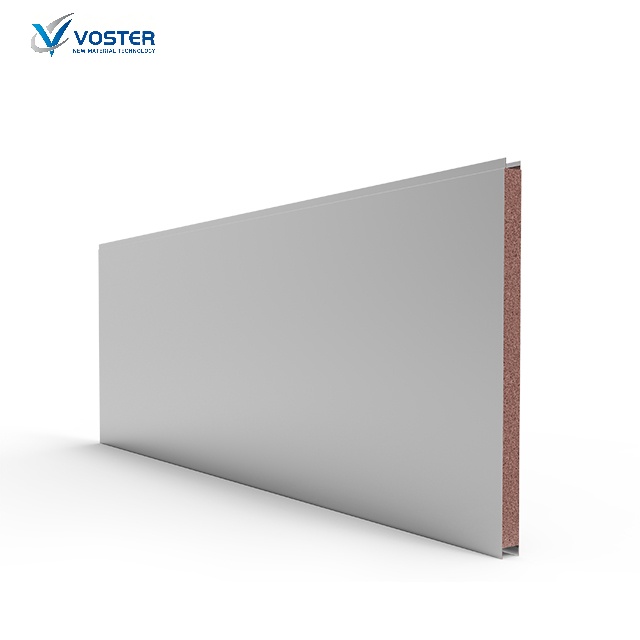

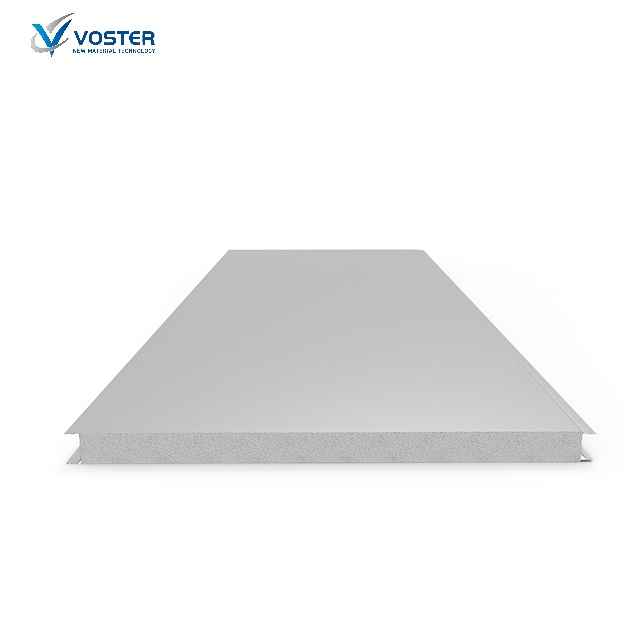

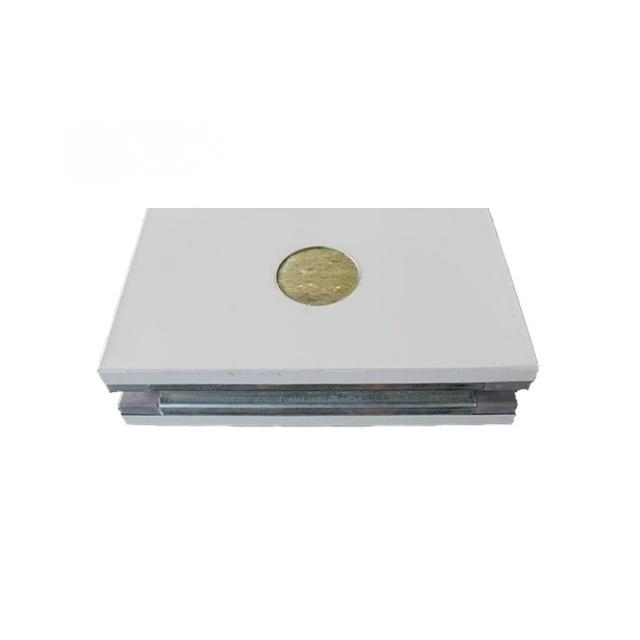

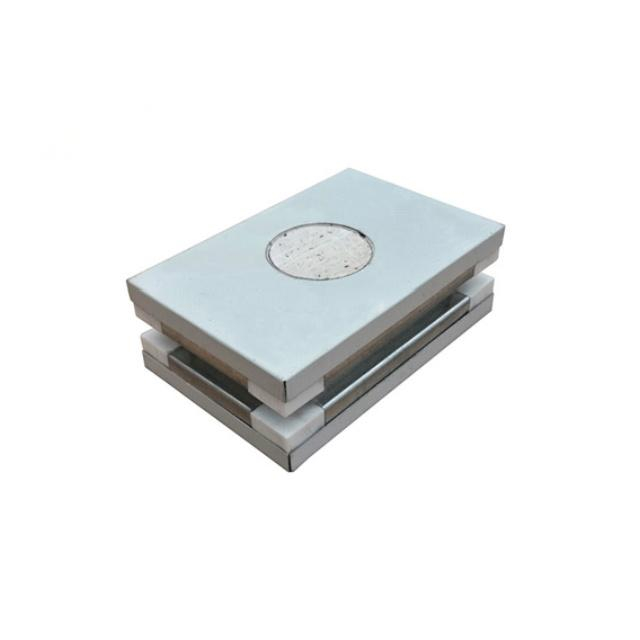

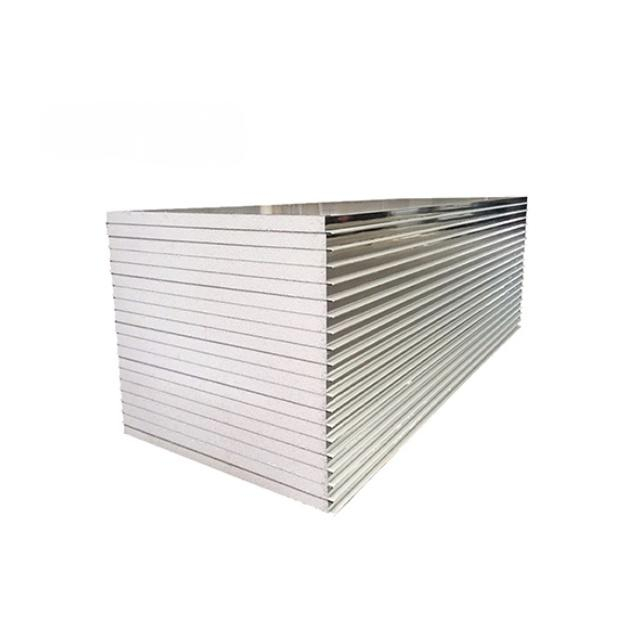

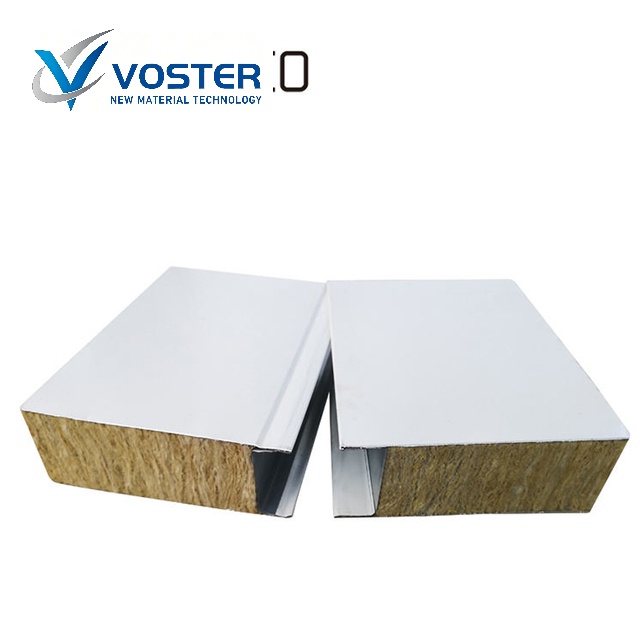

| Core Material | Rock Wool, Magnesium Board, Paper Honey comb, Aluminium Honey Comb, Plaster, EPS, etc. |
Frame TCK | 0.6mm,0.8mm |
Application | Food Clean Room, Food Depot,etc. |

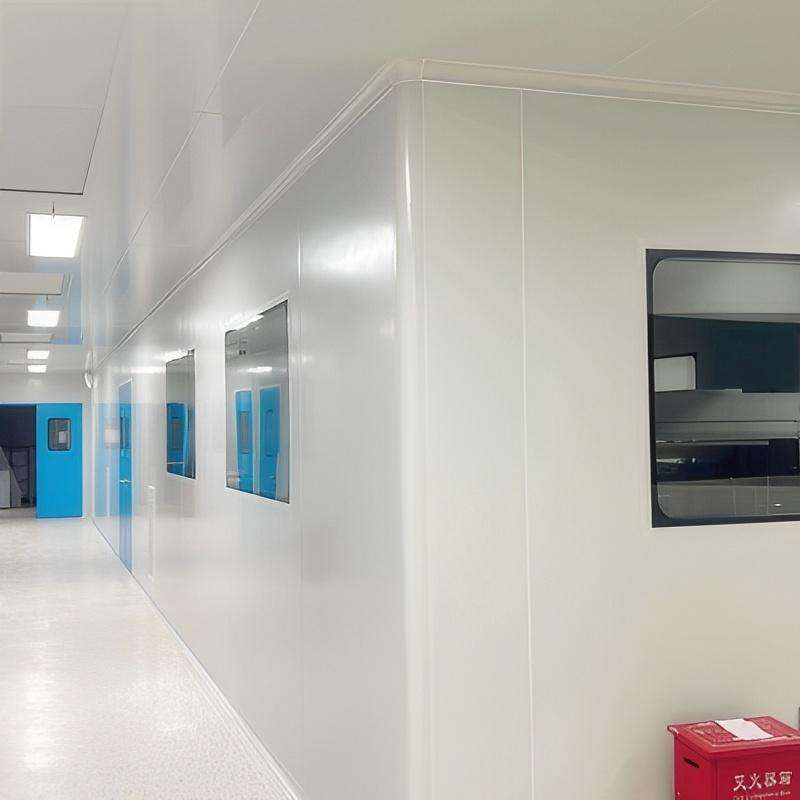

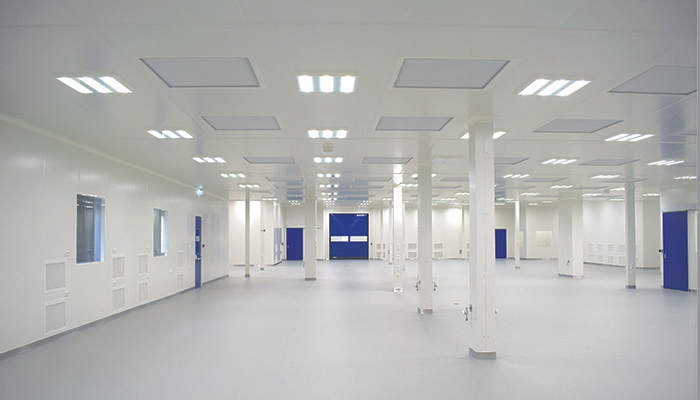

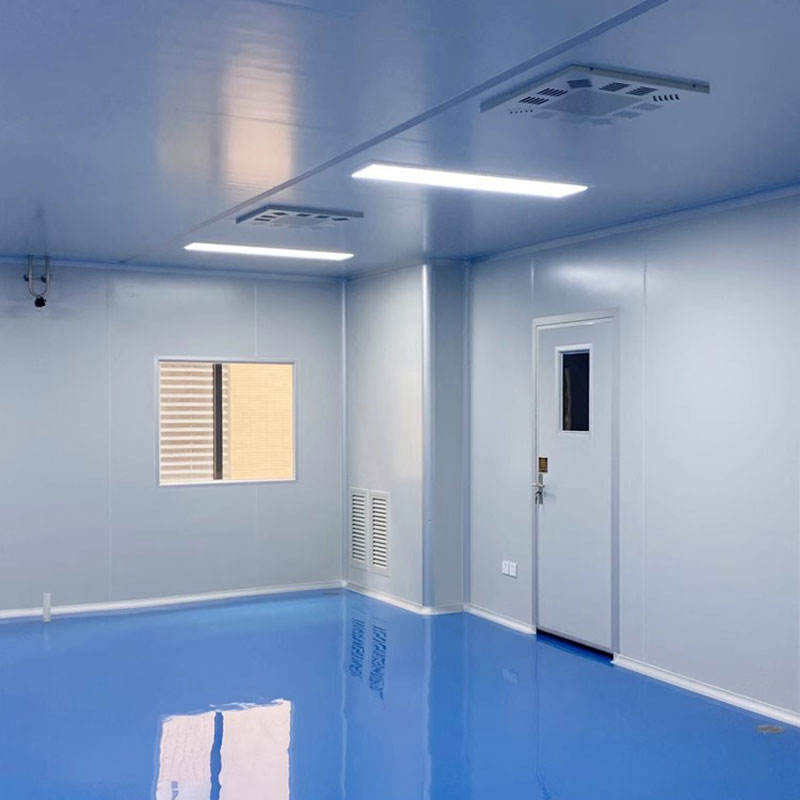

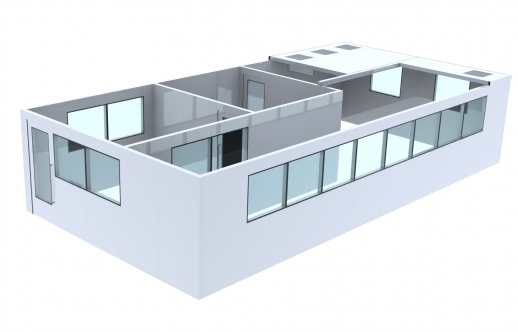

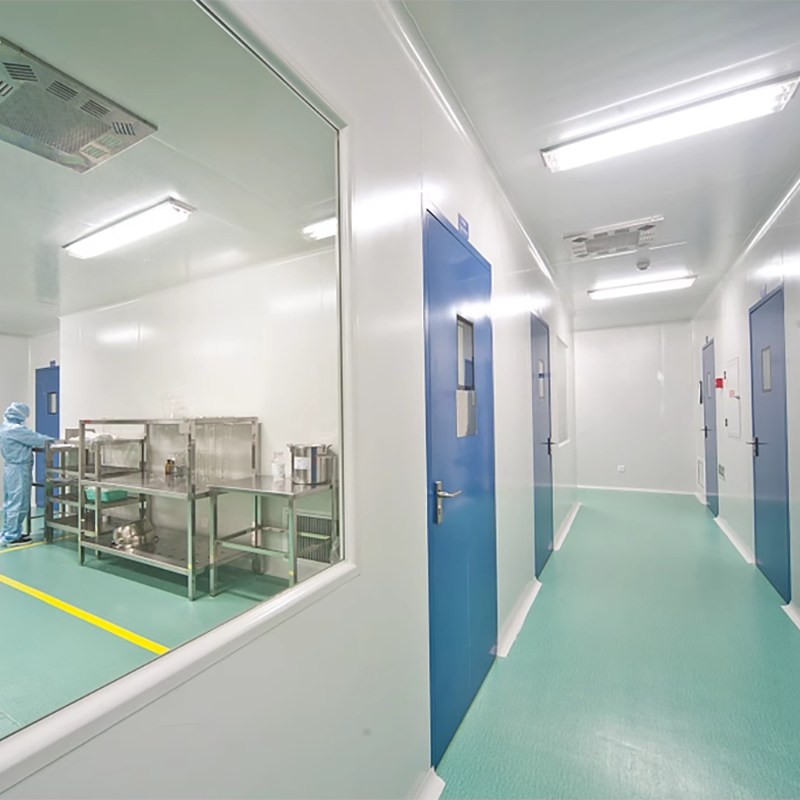

CLEANROOM PANEL are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-spanstructure.
VIDEO
BRD has independently developed a set of international advanced purification of panel continuous production system, including: roller pressure molding system, automatic renewal cotton system, automatic spray adhesive system, double track to finalize the design and temperature control system, robot palletizing system and control system, the system has a high degree of automation, the processing efficiency and product quality is stable, the largest production capacity reach 2 million ㎡ / year, and can produce a variety of core material clean room panel.
Automatic cloth glue: the root adhesive technology, quality more stable, through experiment data testing, automatic line products industry relatively excellent traditional manual wire bonding strength and the flexural bearing capacity have been greatly improved, automatic line purification rock wool plate bonding strength is higher than industry excellent traditional manual line products 50%, double glass magnesium for two times;In bending capacity, the automatic line of rock wool purification board than the industry excellent traditional manual line products 12% higher, 37% higher double glass magnesium. At present, the commonly used steel cooperation manufacturers of BRD are Baosteel, BSGER and other high-end well-known enterprises, high material stability, T bending performance, tensile, yield performance stability.

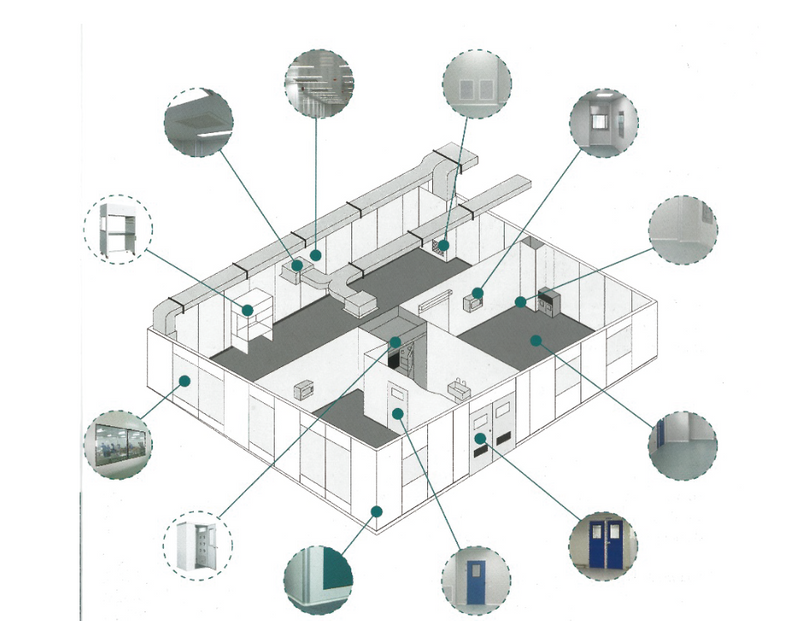

BRD provides customers with professional clean room envelop integrated solutions, and implements comprehensive and integrated services.Including: demand analysis, scheme design, quotation, production order, delivery, construction guidance and daily maintenance services.
