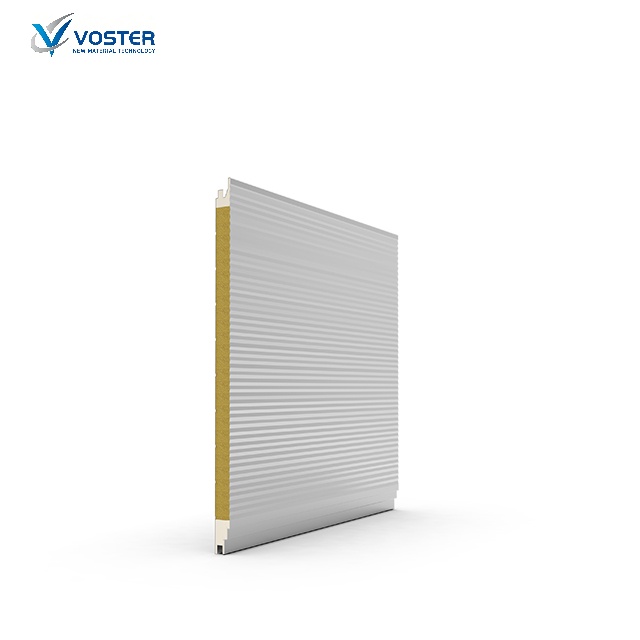

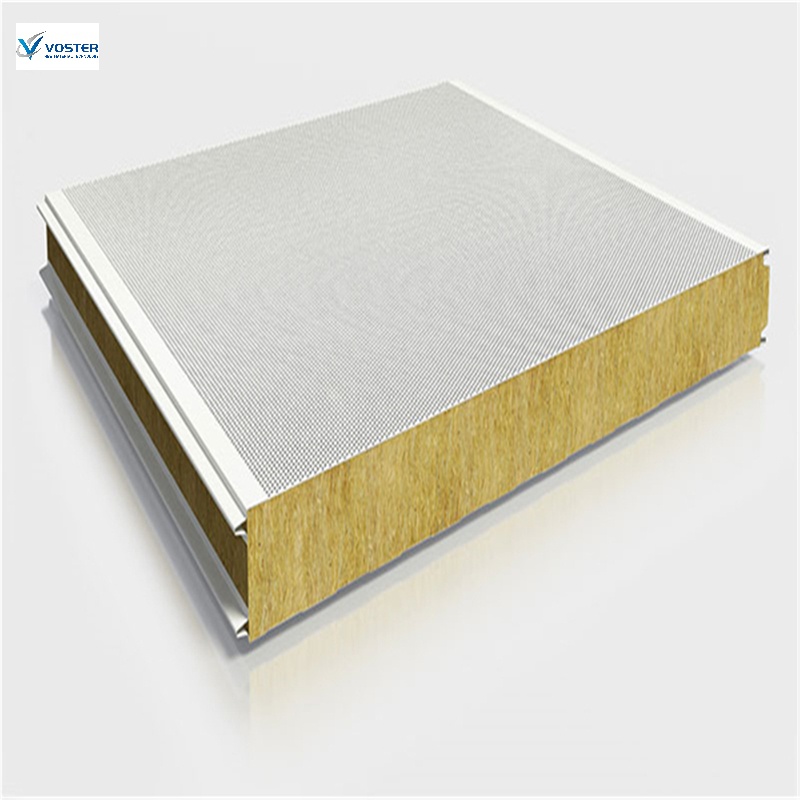

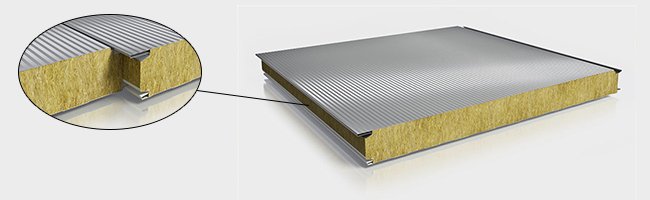

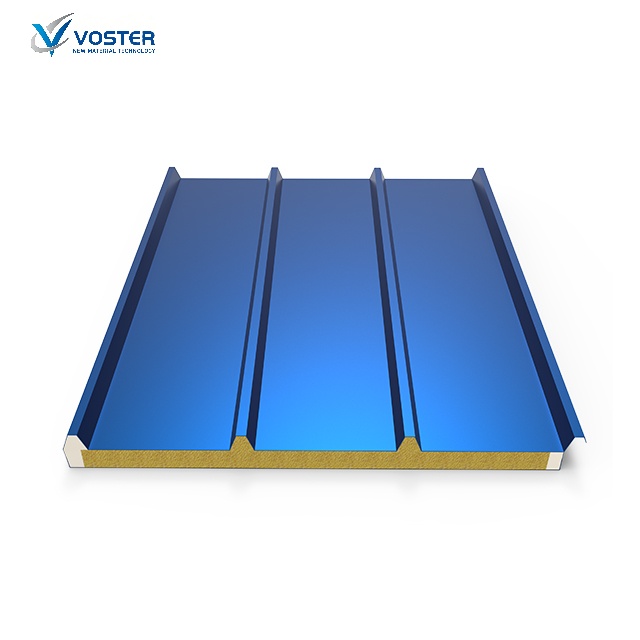

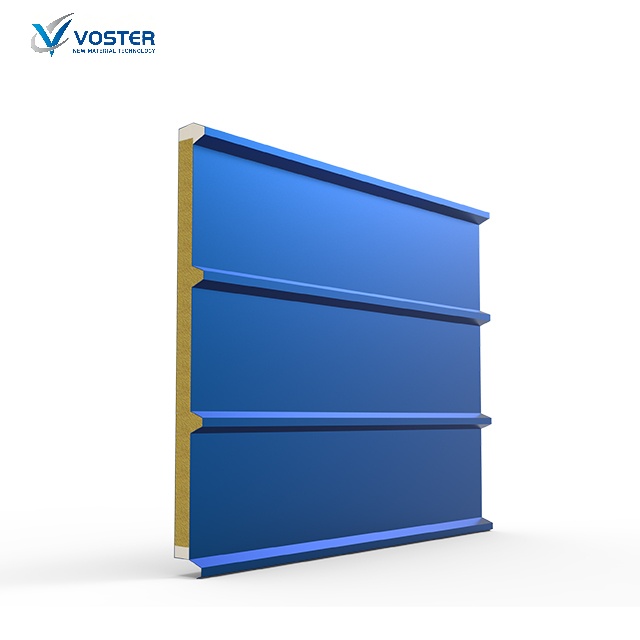

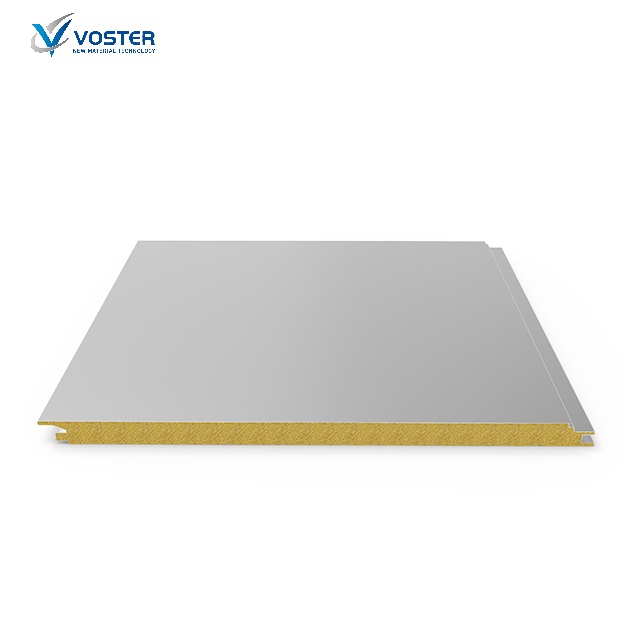

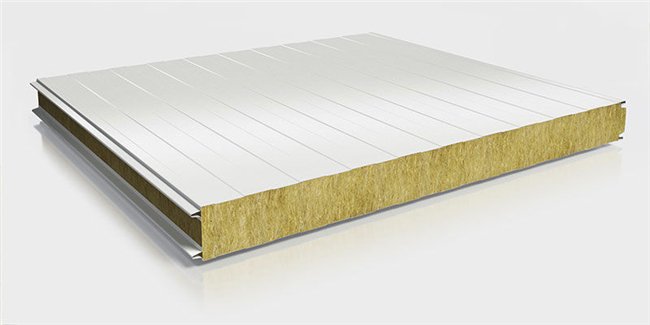

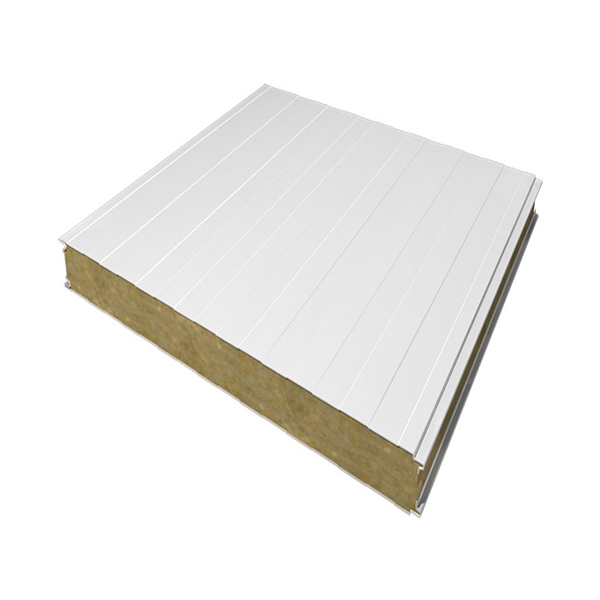

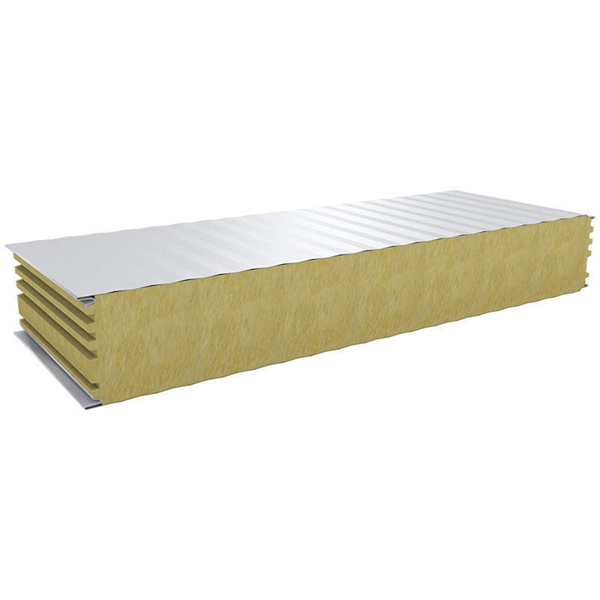

Mineral Wool Sandwich Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density Mineral Wool. Thanks to their properties the panels may be applied in object that require very high fire resistance, mineral wool sandwich panel is the most effective acoustic materials used on construction.
Take the 50mm thick mineral wool sandwich panel for example and the panel can absorb the sound over 30db/m2. Widely used in the steel structure factory building, activities room, roof, wall, air clean room ceiling and partition.
SPECIFICATIONS
Panel Thickness | 50mm, 75mm, 100mm |
Standard Facings | steel sheet coated with polyester paint, 25µm hign zinc sheet with Zn 50 – Zn 180g stainless steel |
Core Material [kg/m³] | Density 100/120 |
Thermal Conductivity [W/mK] | 0.043 |
Acoustic Insulation | 27 [dB] |
Standard Length | 2m-12m |
Width | 950mm,1150mm |
Fire Resistance | Non-flammable |
Mineral Wool = High Fire Resistance
The mineral wool insulating core has high fire resistance and excellent sound insulation. Sandwich wall panels with a mineral wool insulation core offer high fire resistance and thermal insulation properties.

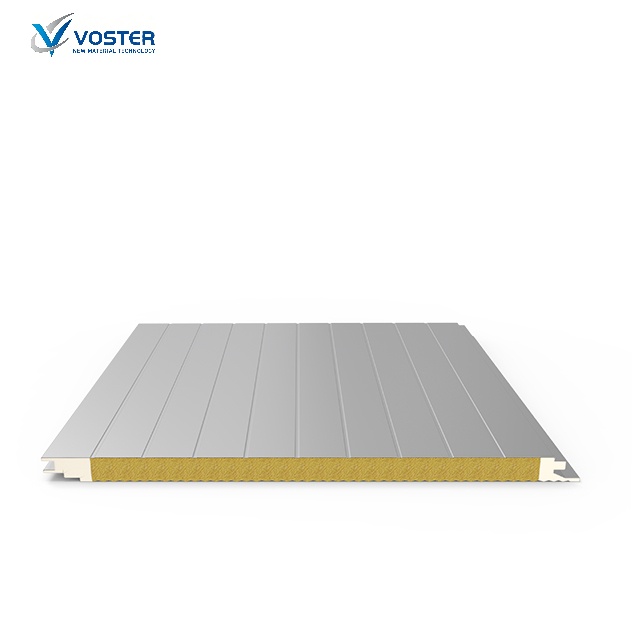

Mineral wool insulation core
High fire resistance
Vertical or horizontal installation

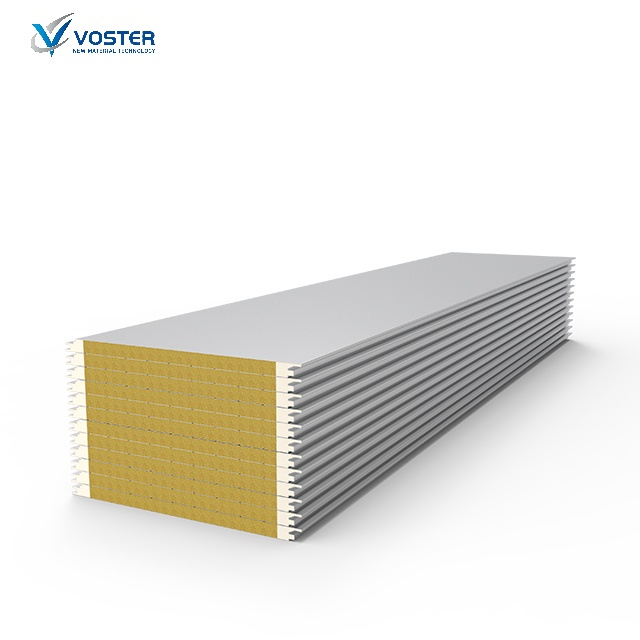

Standard lengths are from 2 m to 10 m (max. 12 m)
Thickness of insulation core 50, 75, 100, 125, 150, and 200 mm

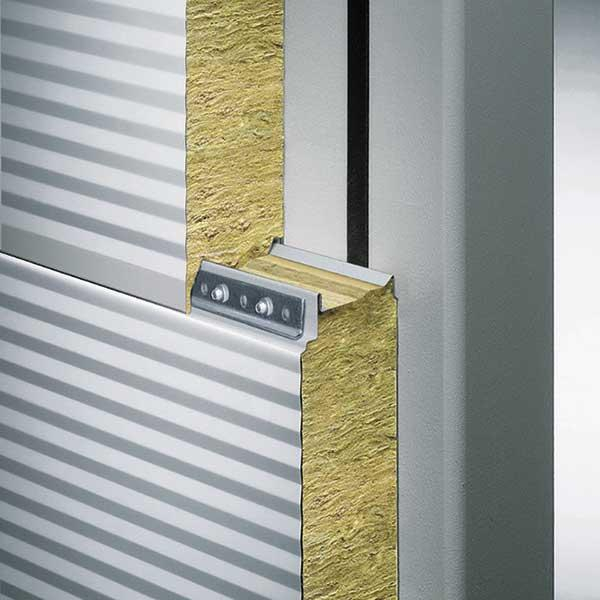

MINERAL WOOL SANDWICH PANEL are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.

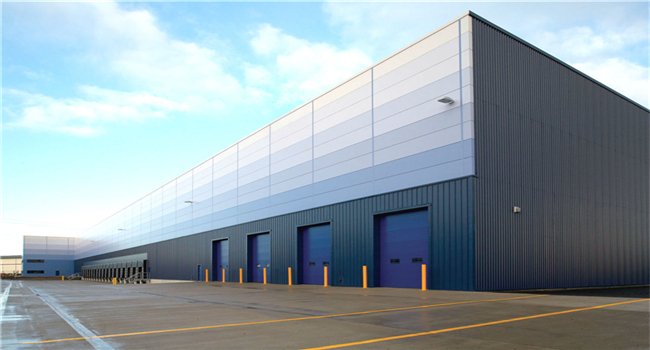

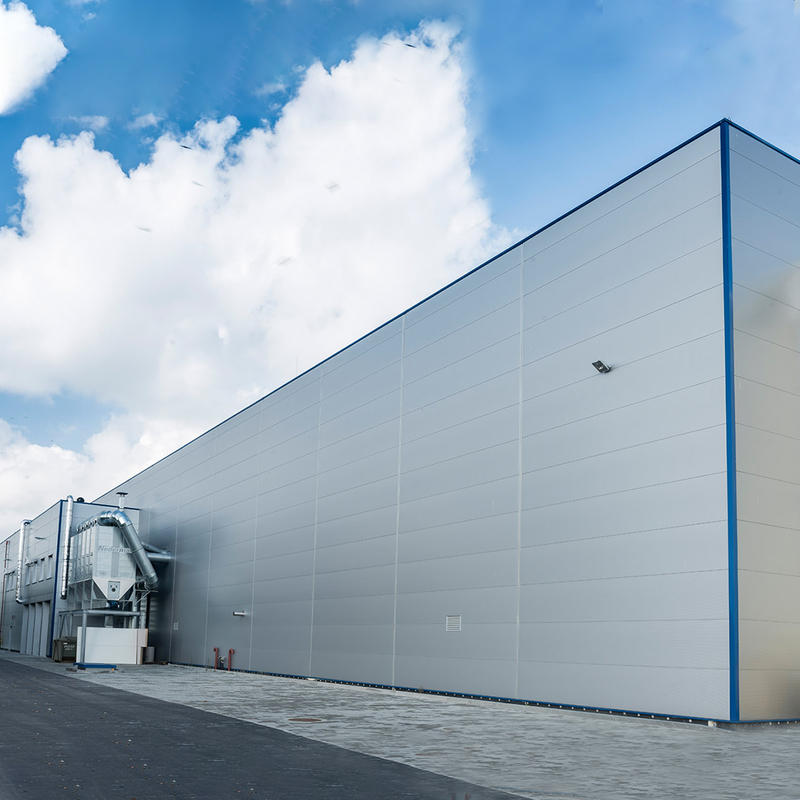

Industrial Buildings
Store Houses And Logistic Centres
Commercial Buildings And Offices
Food Industry Facilities
Agricultural Objects
Sport Halls
INSTALLATION VIDEO
1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.
2, Before the installation of mineral wool wall panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.
3, Before installation mineral wool wall panel, it should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and wall frame beam connection with self tapping screw fixation.
4, Mineral wool wall panel links with ground.
Store Dedicated technical support is available throught the building cycle, pre- and manufacture.
Contact us for complimentary services including:
U Value/ Condensation risk calculation, bespoke construction detail, advice on fire & accoustic performance, panel spans, fastener & roof drainage calculations, optimised lighting designs, building energy modelling & Installation Training.

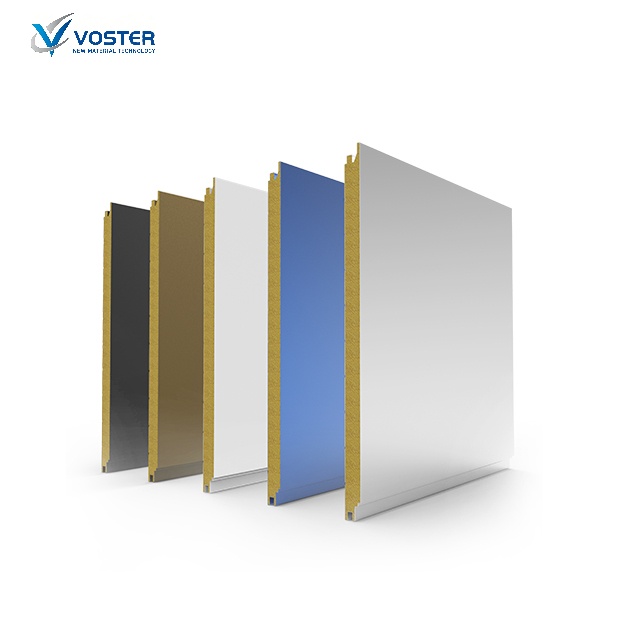

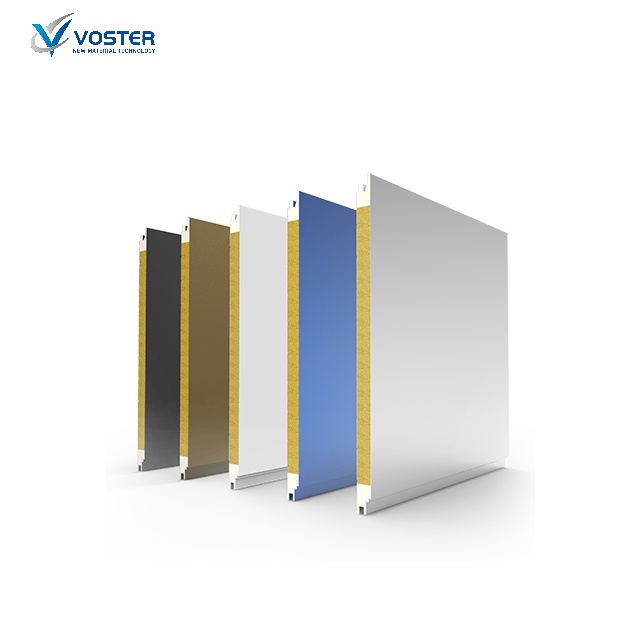

Standard colors of external cladding [RAL]
FLAME RED
RAL 3003
GENTIAN BLUE
RAL 5010
SILVER
RAL 9006
WHITE GREY
RAL 9002
PURE WHITE
RAL 9010
LIGHT IVORY
RAL 1015
TRAFFIC WHITE
RAL 9016
YELLOW GREEN
RAL 6018
SLIVER GREY
RAL 7016
