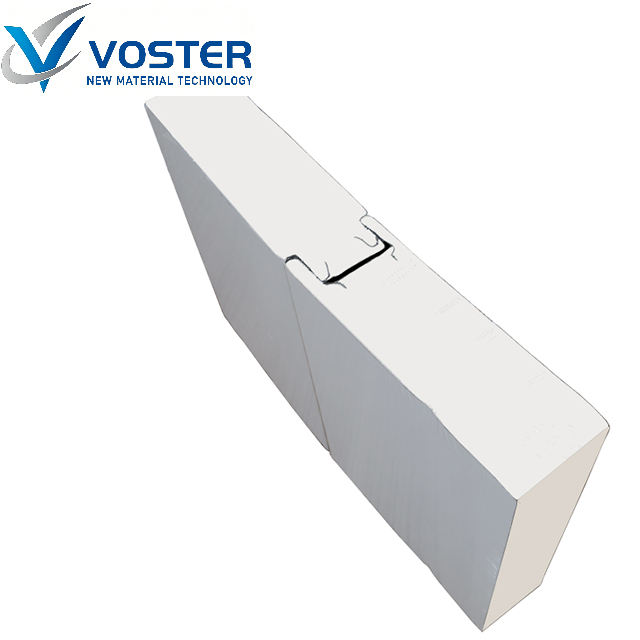

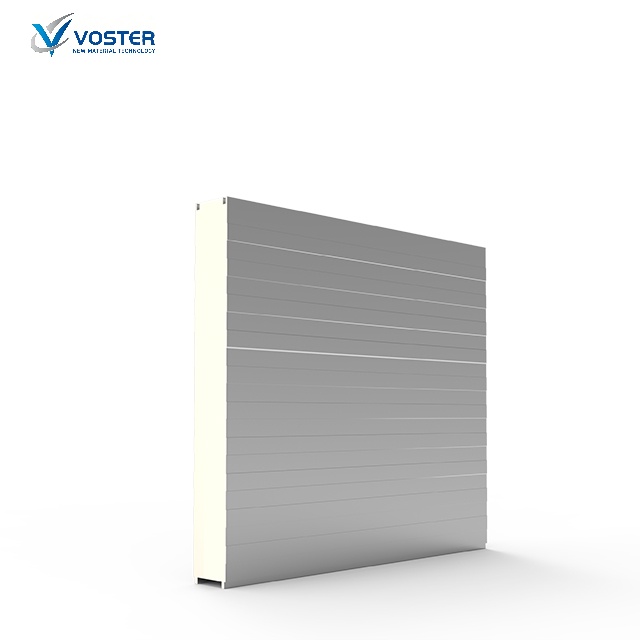

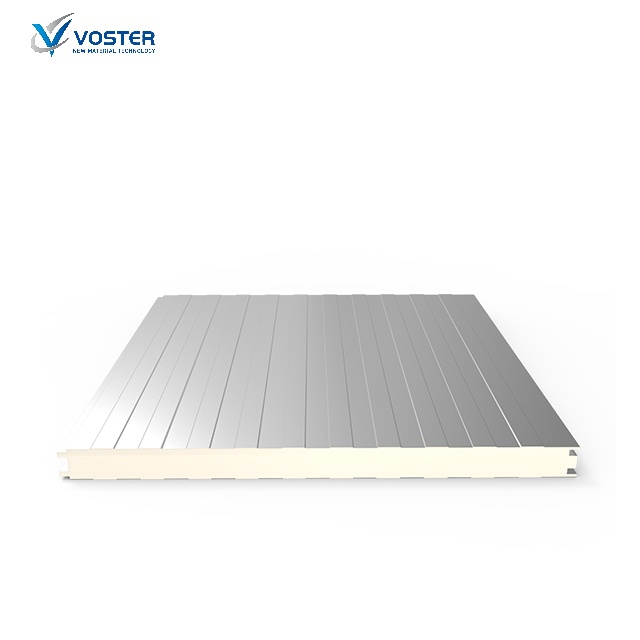

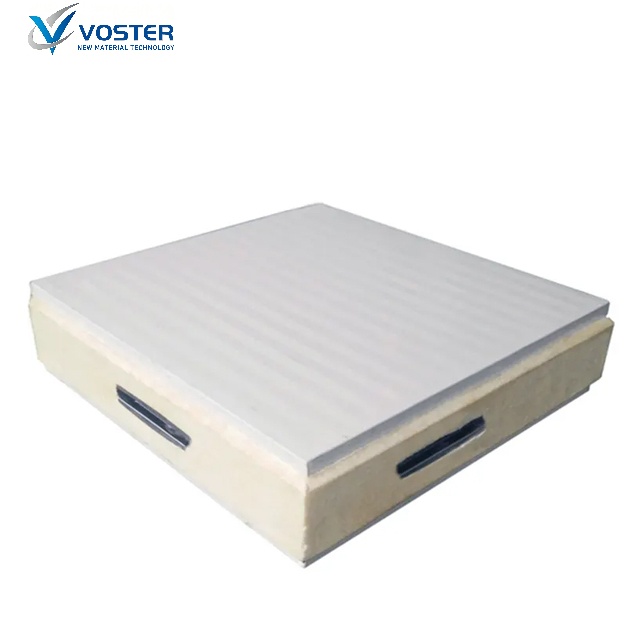

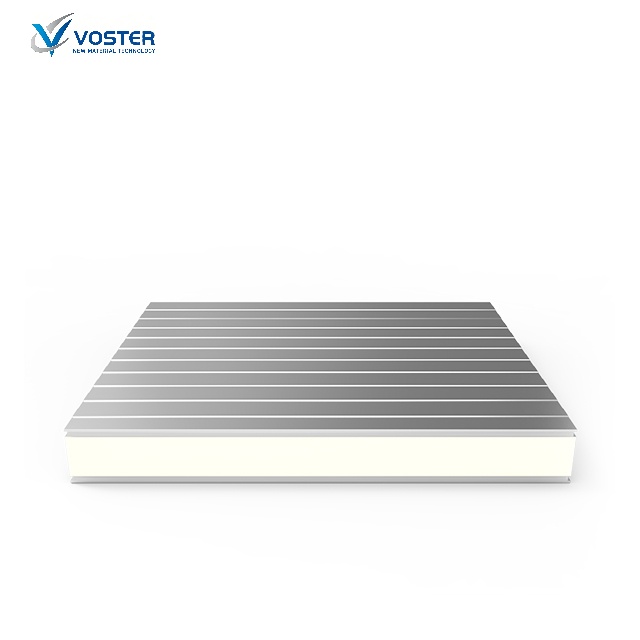

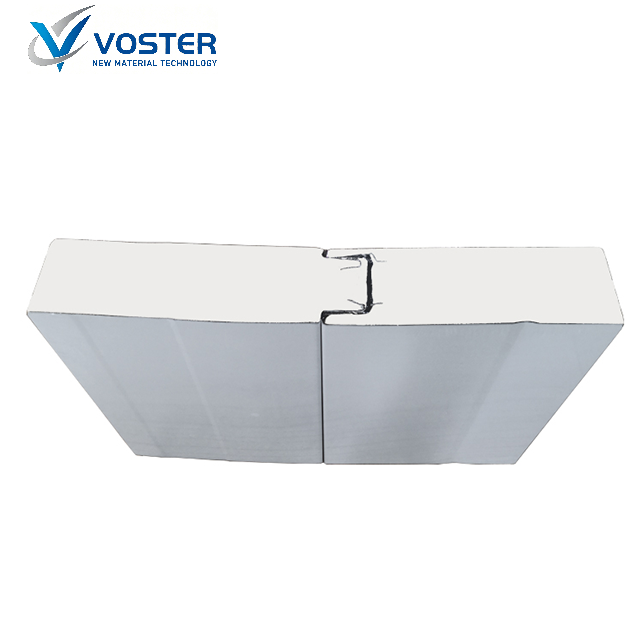

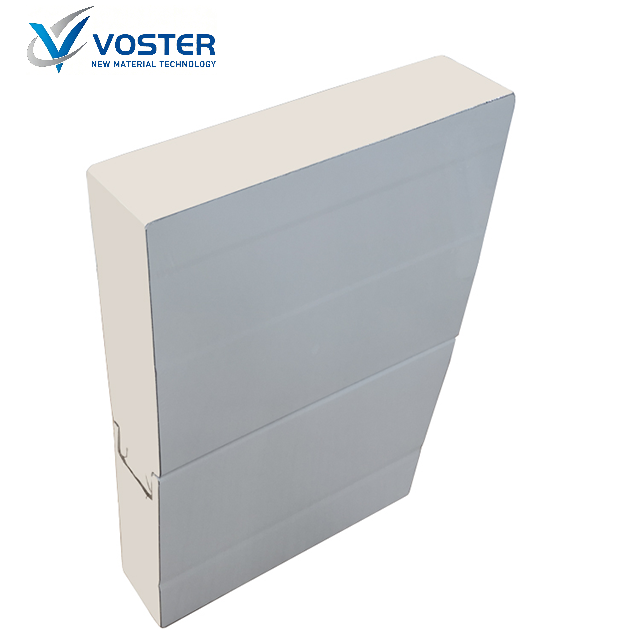

Cold Room Panel In Australia

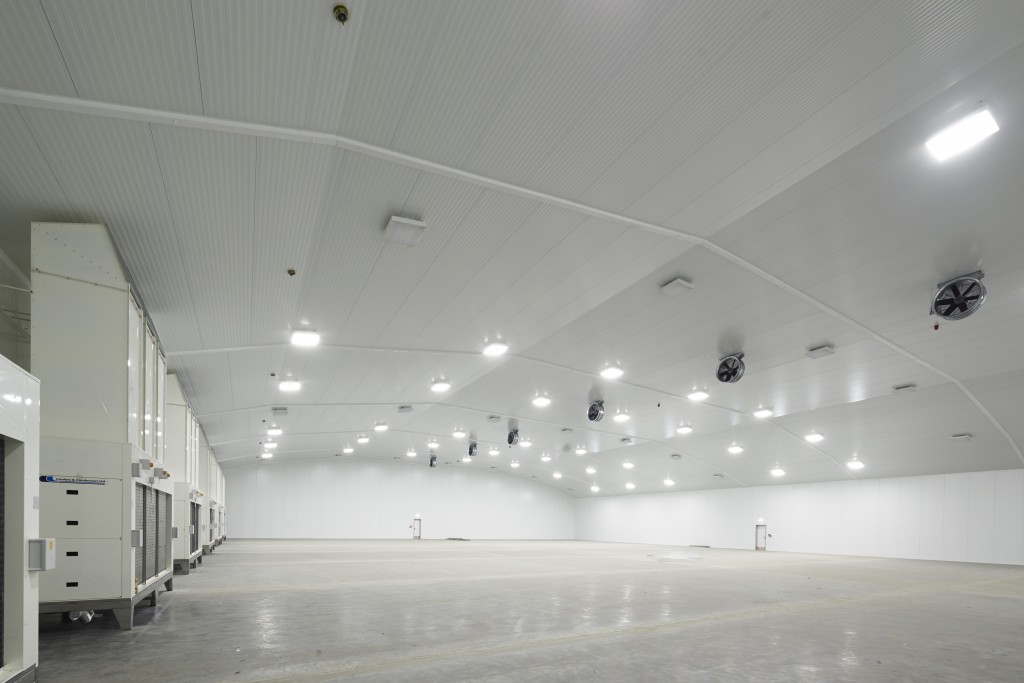

BRDECO Cold Room Panel widely used in large industrial plants, cold storage, garage, mobile homes, exhibition halls, stadiums, shopping centers, airports, power plants, villas, hospitals, and high-rise office buildings and other areas of the formation.
  • 🛠

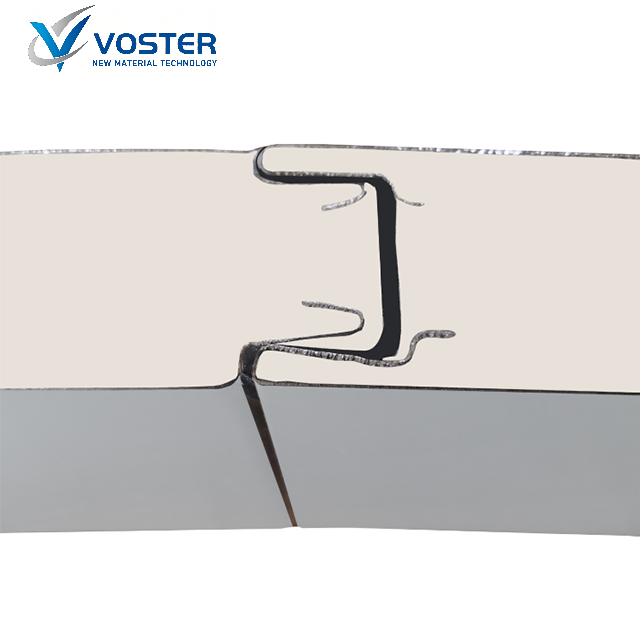

    HIDDEN FIXING
  • 🌡
    THERMAL INSULATION
  • 🏗
    WALL PANEL
  • 🧪
    POLYURETHANE FOAM
  • 🏠
    RESIDENTIAL
Inquire
  • DESCRIPCTION
  • CHARACTERISTICS
  • APPLICATION

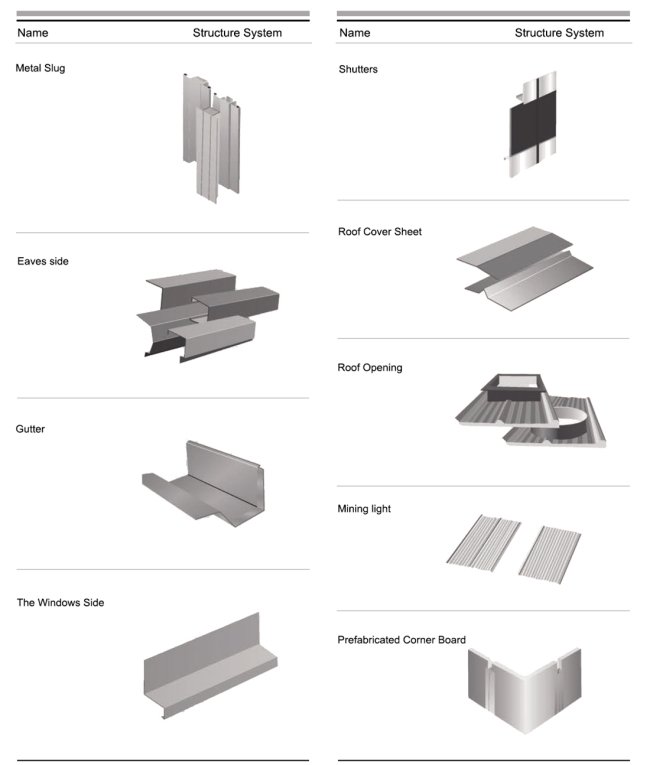

  • SYSTEM ACCESSORIES
  • COLOR OPTIONS

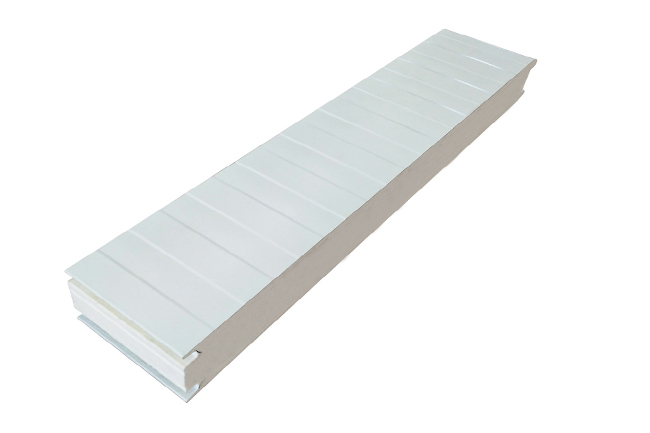

PU-Cold-Room-Panel-BRDECO (3)

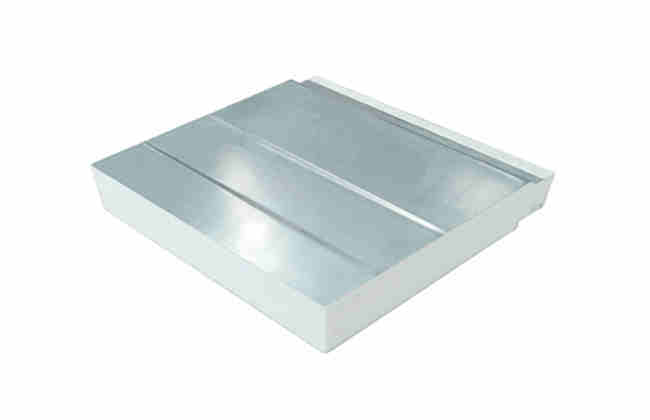

Cold Room Panels are composed of 3 layers, the external and internal is galvanized sheet or Aluminum sheets, and core materials used high density polyurethane foam. Thanks to their good thermal insulation properties, it can be applied in projects that required very high heat insulation performanece, like cold storage, cool room ,freezer, refrigerating workshop construction.


SPECIFICATIONS

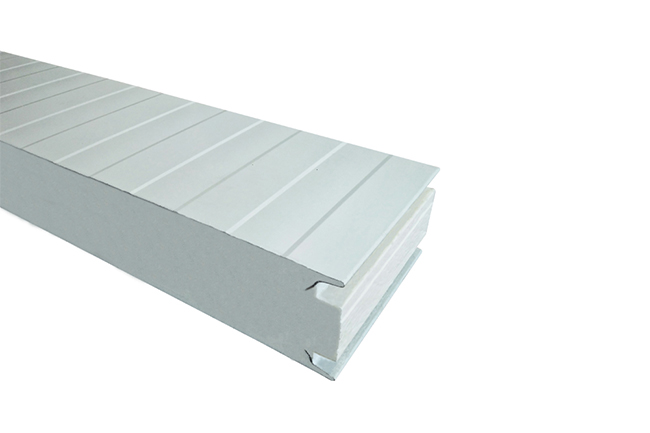

PU-Cold-Room-Panel-BRDECO (4)

Feature:

▲Energy saving

▲Thermal insulation

▲Design flexibility

▲Aesthetically pleasing

▲Meets health industry regulations

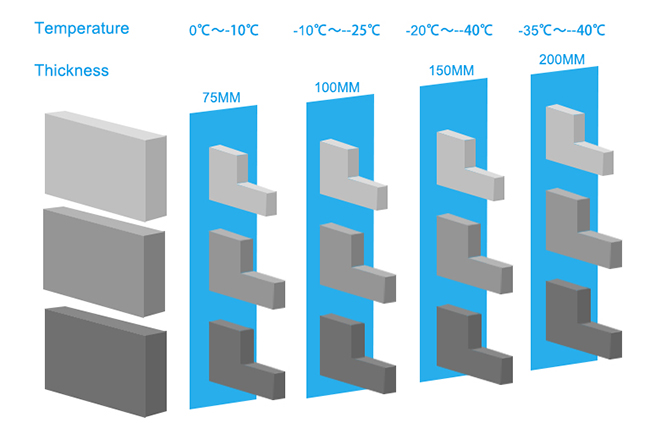

Panel Thickness

 50, 60, 75, 100, 150, 200mm

Standard Facings

Steel  sheet coated with polyester paint, 25µm

Hign  Zinc sheet with Zn 50 – Zn 180g

Stainless steel

Core Material Density

40 [kg/m³]   ±2kg/m³

Thermal Conductivity

0.022 [W/mK]

Acoustic Insulation

30 [dB]

Standard Length

2m-12m

Effective width

500-1150mm

Fire resistance

Non-flammable
